Product Overview

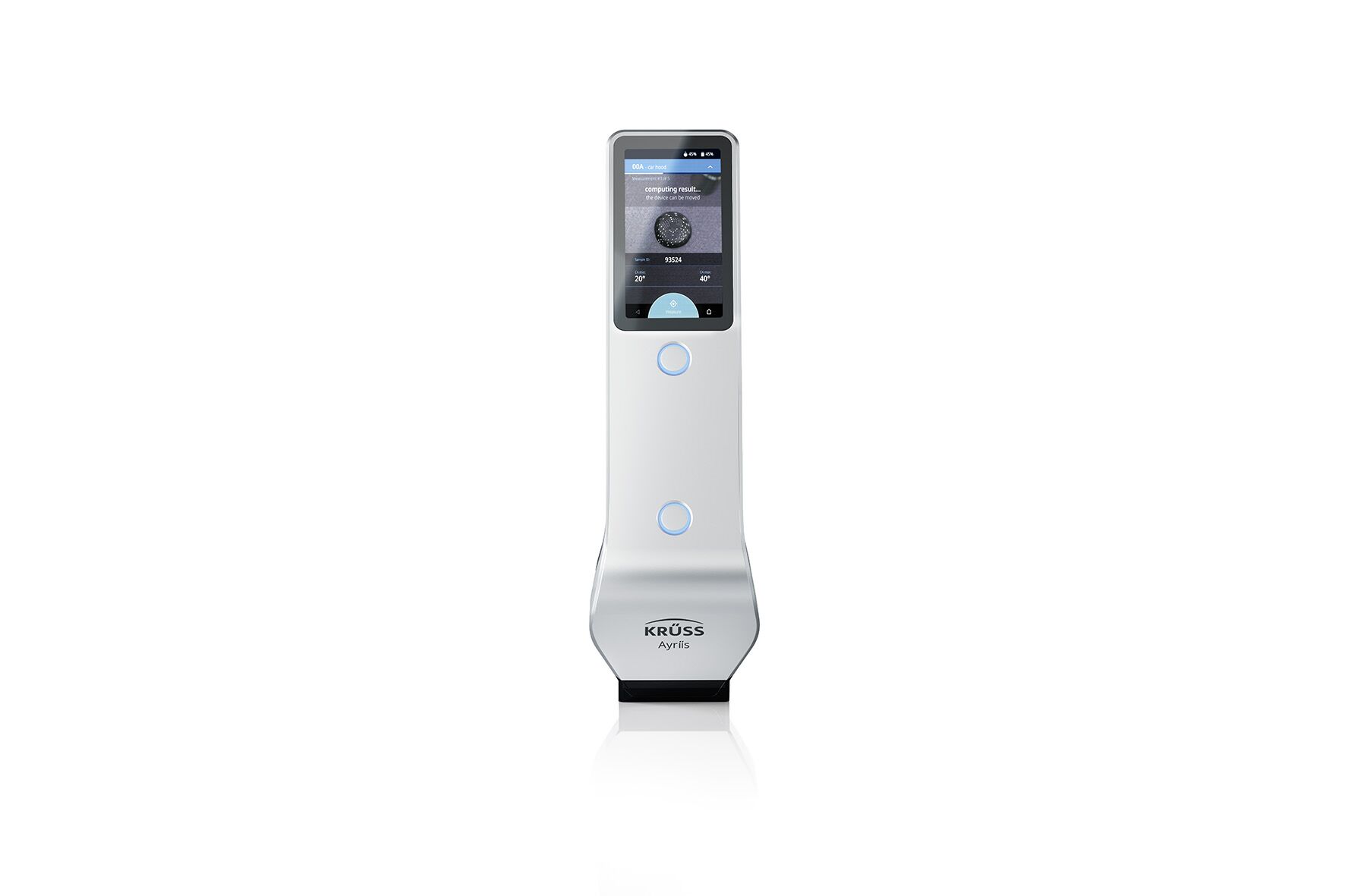

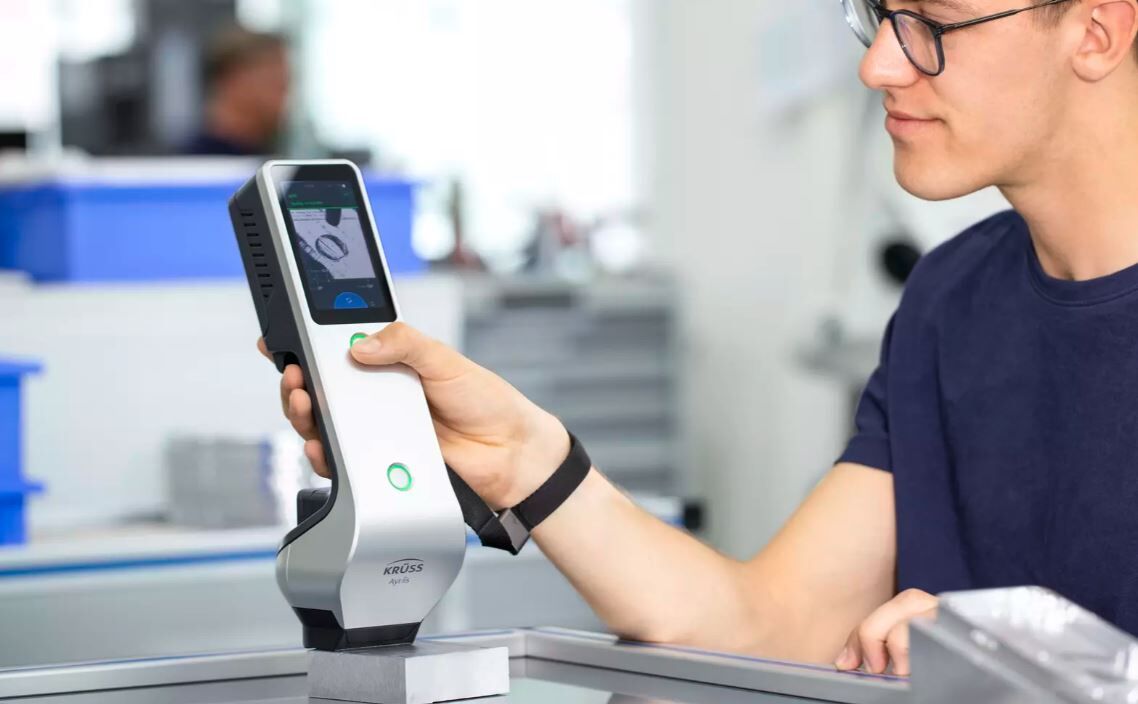

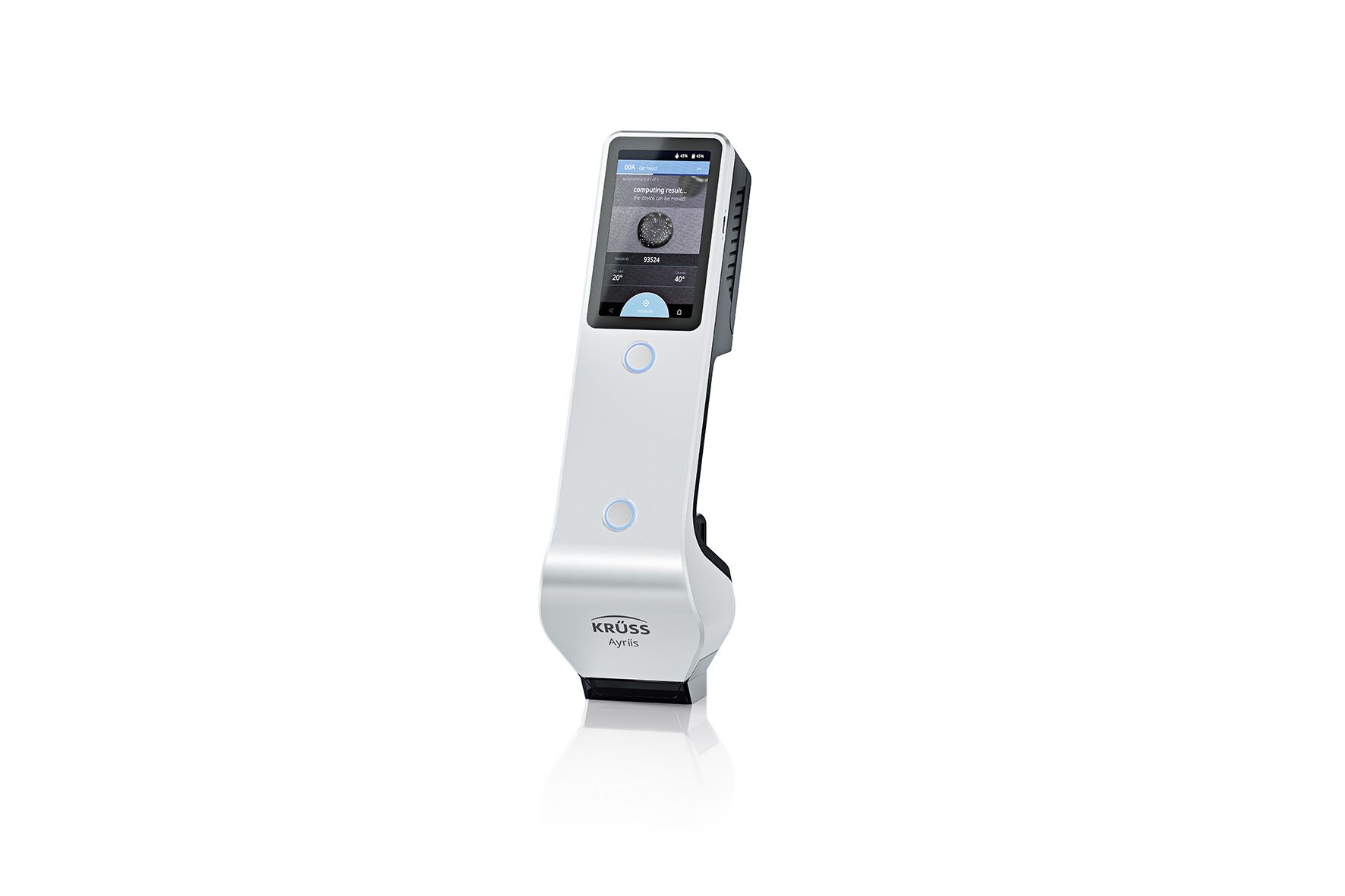

The KRUSS Ayriis provides 3D contact angle measurements for wettability in the palm of your hand  Purposefully designed to eliminate user intervention and result interpretation, it assures repeatable and reliable QC checks of wettability.  Ayríís quickly provides automatic self-checking for each result and is especially useful for large workpieces.

Ayríís is easy to use with no special training requirements and no need for additional connections to peripheral devices. It’s ready to work when you are.

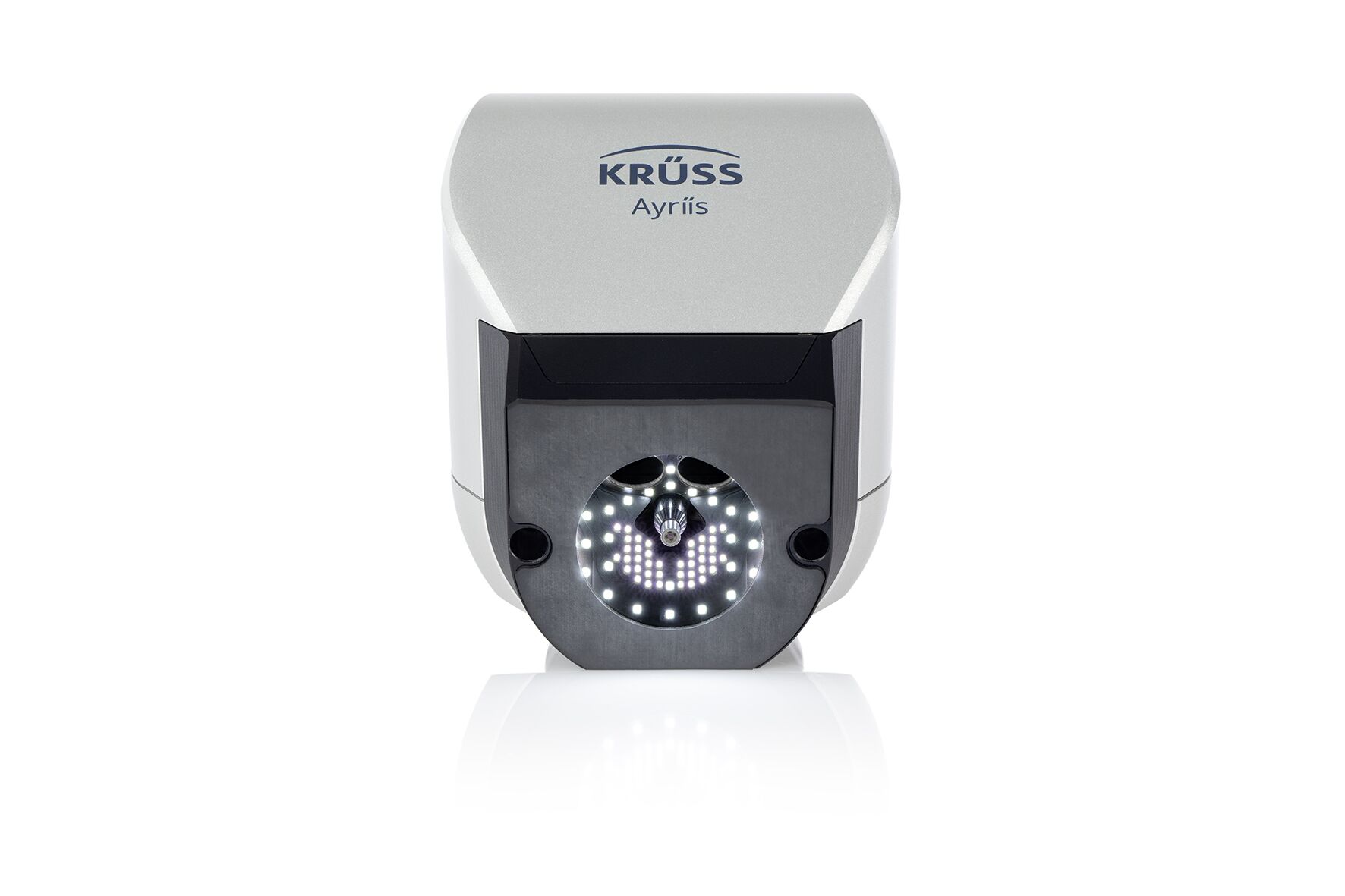

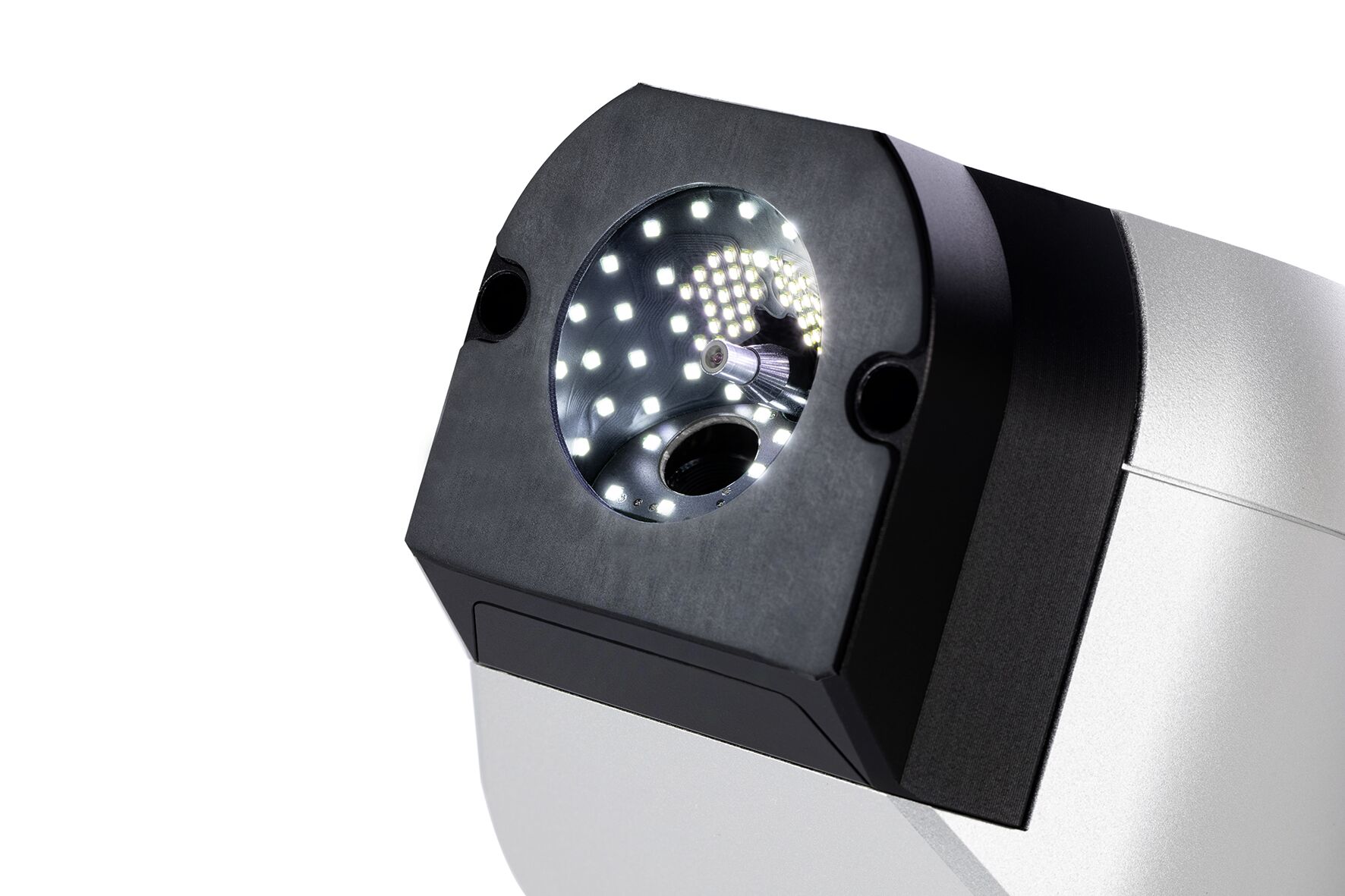

Ayriis makes measurements completely user-independent, even for difficult surfaces, using the novel measurement technology: the 3D Contact Angle. 90 diodes arranged in a spherical cap generate light patterns whose reflections are registered by two cameras through the drop surface. At the same time, a laser records the surface height. A complex algorithm reconstructs the dosed drop as a three-dimensional object. Thanks to the large amount of data – even the dispensing volume is included as an additional support – an increasingly precise 3D image of the real drop is created until finally any error is excluded and the exact contact angle can be determined.
