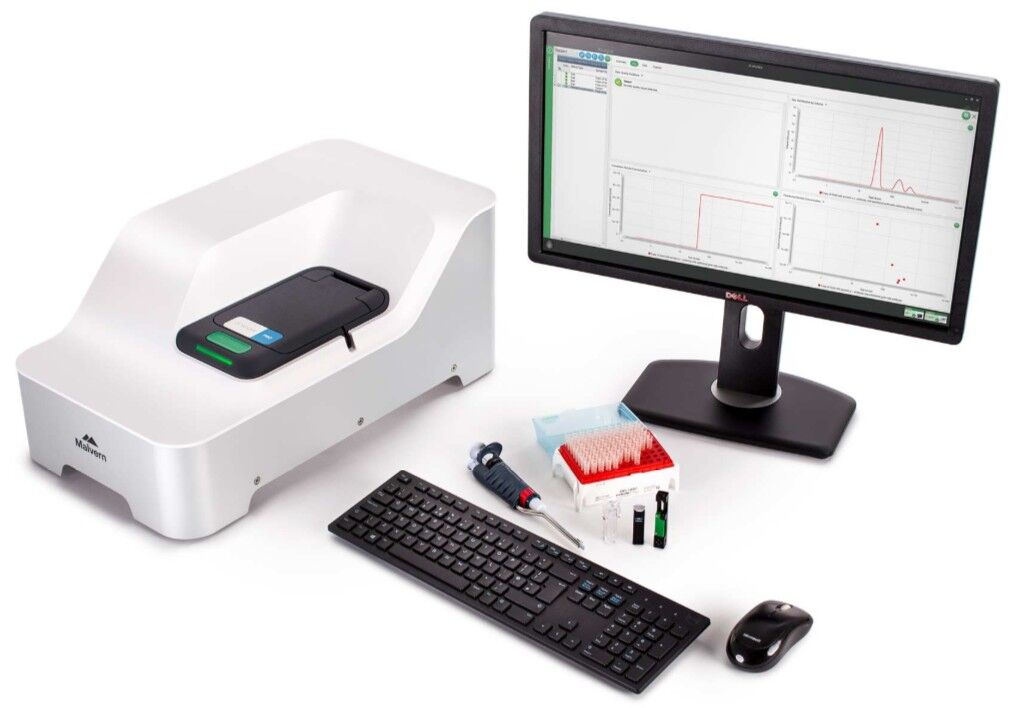

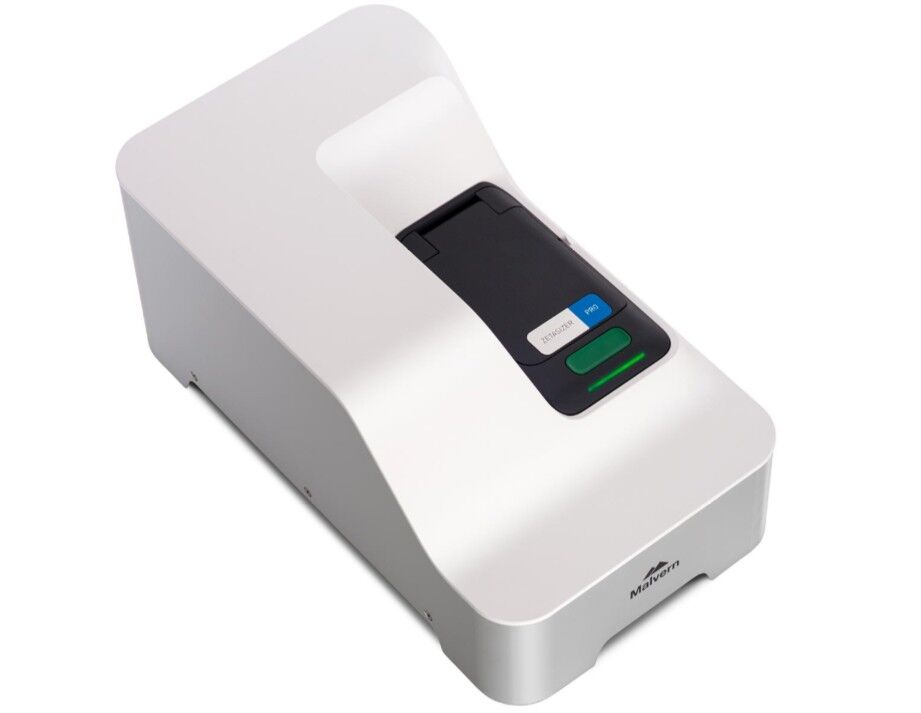

Malvern Zetasizer Pro

The Zetasizer Pro is the most versatile system for the measurement of particle and molecular size and electrophoretic mobility and zeta potential of nanoparticles.

Malvern Zetasizer Pro

The Zetasizer Pro is the most versatile system for the measurement of particle and molecular size and electrophoretic mobility and zeta potential of nanoparticles.

Manufacturer Malvern Panalytical
Product Series Malvern Zetasizer
Measurement principle Dynamic Light Scattering
Application Molecular Weight & Size, Nano Particle Size, Protein Crystallisation
Size range0.3 nm - 10 μm (diameter)
Measurement angle173°, 13°
Sample volume12 μL
Sample concentration range0.1 mg/mL to 40% w/v

Product Overview

The Zetasizer Pro is the most versatile instrument for the measurements of molecular size, particle size, electrophoretic mobility and zeta potential.

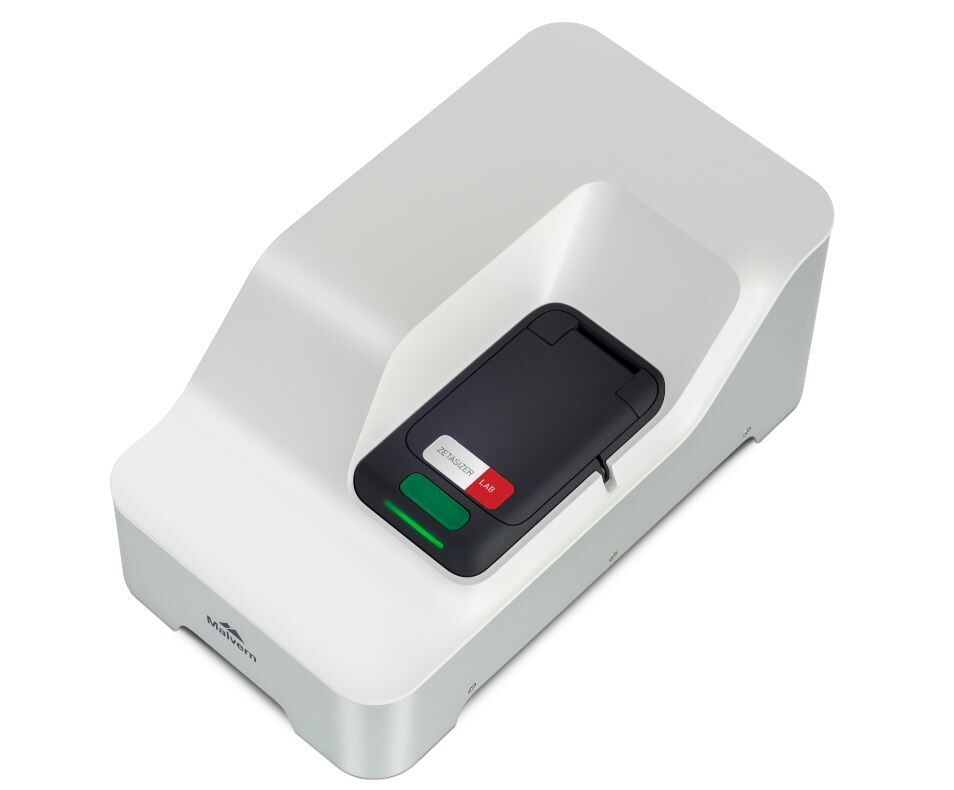

Zetasizer Pro is part of the new Zetasizer Advance range which comprises of three core models: Zetasizer Lab, Zetasizer Pro, and Zetasizer Ultra. Each model is available in two variants: a Blue Label version for routine sample investigation and a Red Label version for use with more challenging samples.

Built on the market-leading Zetasizer Nano range, the new Zetasizer Pro delivers enhanced speed and ease of use, accelerating sample throughput and freeing up operator time for other tasks.

Non-Invasive Back Scatter (NIBS®) technology enables the precise measurement of particle and molecular size over an extended concentration range while M3-PALS technology provides excellent zeta and electrophoretic mobility measurements. The addition of Constant Current Mode for measuring electrophoretic mobility and zeta potential in high conductivity media reduces the likelihood of errors associated with charge screening at higher ion concentrations.

The unique sample-centric workflow of the ZS Xplorer software is designed to simplify and automate analysis to deliver the ultimate in usability and flexibility.  A new algorithm called Adaptive Correlation applies intelligent logic to separate data associated with the presence of dust or aggregates, filtering these from the results to give a more representative overall picture of the sample.

Zetasizer Sample Assistant addresses the growing need to scale up to keep pace with the higher throughput requirements by enabling round-the-clock automated sample measurements. It enables researchers to continue obtaining the high-quality data needed for critical decisions, while eliminating the risk of cross-contamination. The accessory will also minimise the requirement for supervision, freeing scientists time for other tasks.

  • Demonstration video
  • Benefits
  • Applications
  • Accessories

Demonstration video

Benefits

  • Dynamic Light Scattering (DLS) measures particle and molecule size, from below 1 nm to 10 μm.
  •  Electrophoretic Light Scattering (ELS) measures the zeta potential of particles and molecules, indicating sample stability and/or propensity to aggregate.
  • Sample-centric ZS Xplorer software enables flexible, guided use, and provides assistance as required.
  • The deep-learning empowered Data Quality System assists users in understanding which of their size data might be poor, and why and also suggests how to improve results.
  • Optical filter wheel offers a fluorescence filter and both vertical and horizontal polarisers for analytical flexibility.
  • Adaptive Correlation produces reliable and repeatable data over twice as quickly, providing a truly representative view of the sample.
  • NIBS (Non-Invasive Back-Scatter) technology maximises the dynamic range, providing the highest sensitivity for even the most concentrated samples.
  • M3-PALS with Constant Current Mode measures electrophoretic mobility and zeta
    potential in high conductivity media.

Applications

  • Bioscience and biopharmaceuticals: simple purity and stability screening can assist with formulation development. Time, temperature, pH and shear can all impact biological molecules and cause aggregation, which is detected by Zetasizer instruments.
  • Pharmaceuticals and drug delivery: effective therapeutics must be delivered safely, with dispersion quality and stability being critical quality attributes.  Zetasizer systems can help speed up formulation development and final product development by providing insight earlier in the development pipeline.
  • Paints, inks, and coatings: the stability of formulated nanoparticle suspensions is important, and both size and zeta potential help optimise product performance. Non-invasive back-scatter analysis can be used over a wide concentration range, with no/minimal dilution.
  • Advanced Nanomaterials: Zetasizer instruments’ high sensitivity and low sample volume requirement can help guide in the early research and development phase of advanced materials design for materials like graphene, catalysts, and  nanotubes.
  • Food and drink: appearance, stability and flavour emulsions are all influenced by some of the nanoscale properties light scattering can measure –  not only particle size but also particle charge, can influence the final consumable product.
  • Consumer products ranging from detergents to cosmetics. Understanding of colloidal stability and control or adjustment of performance parameters helps guide product development.
  • Academia: As an essential analytical instrument in many educational settings and academic research laboratories, tens of thousands of scientific publications attest to the widest range of suitable applications – and the particular ease-of-use and built-in reliability of Zetasizer systems have helped make them the favoured ‘go-to’ tools for rapid ensemble average size as well as zeta potential determination.

Accessories

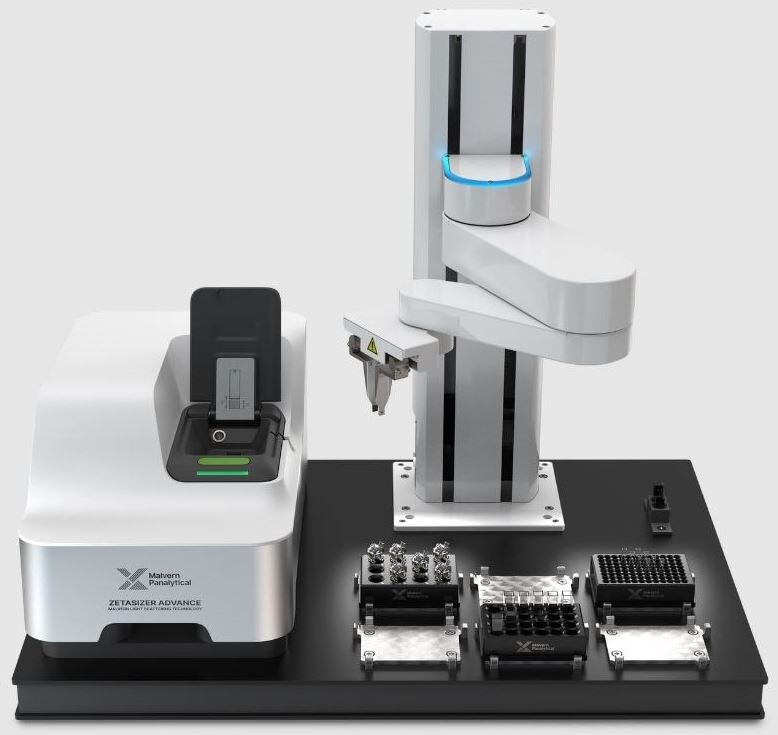

Zetasizer Sample Assistant

Download brochure here

Zetasizer Sample Assistant is an automation option that enables users to generate more measurements of particle size, zeta potential, and particle concentration per day, while reducing the need for supervision.

MPT-3 Auto titrator

Designed to automate the measurement of size and zeta potential as a function of pH.

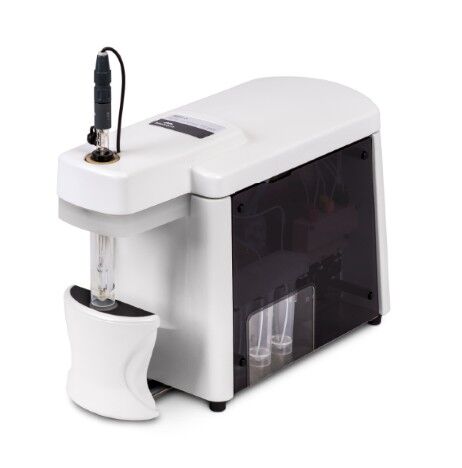

Zetasizer ultra titrator

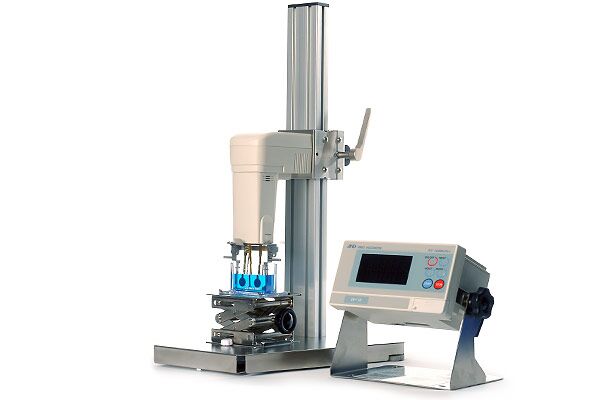

SV-10 Viscometer
Measures viscosity for the conversion of diffusion speed to size, and electrophoretic mobility to zeta potential. Useful for complex dispersants for which there are no available standard literature values for viscosity.

SV 10 viscometer

Disposable and reusable cells

A range of cells are available to optimise the measurement in terms of sample volume and concentration, including the new low volume disposable sizing cell kit, which offers the dual benefits of size measurements in as little as 3μL, and extension to the upper size range of DLS measurements.

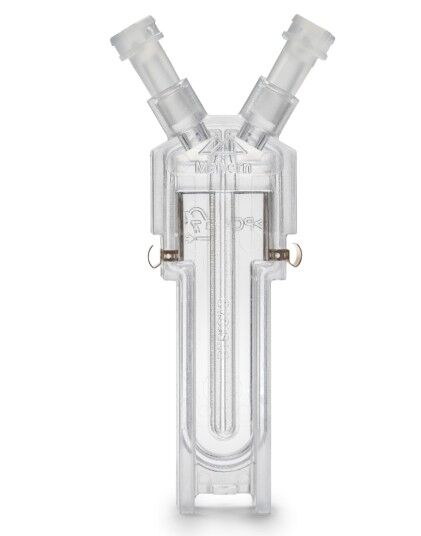

*  New disposable folded capillary cell

This new capillary enables contamination-free, high accuracy size, zeta potential and protein mobility measurements in as little as 20 μL of sample. The new capillary shape provides improved repeatability along with enhanced thermal performance.

Disposable folded capillary cell















*  Low volume disposable sizing cell (Zetasizer Ultra only)

A very low volume (minimum 3 μL) disposable sizing cuvette which extends the size measurement range for the Zetasizer without density-matching of the dispersant.

Low volume disposable sizing cell

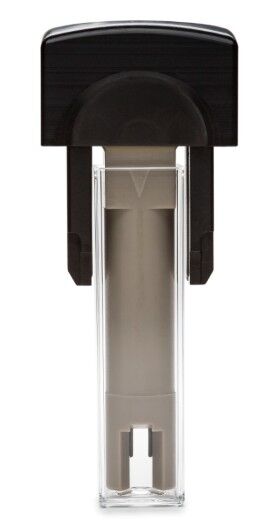

*   Universal ‘dip’ cell kit
A reusable solvent resistant cell for the measurement of zeta potential in aqueous and non-aqueous dispersants using polystyrene or glass cuvettes.

Universal ‘dip’ cell kit

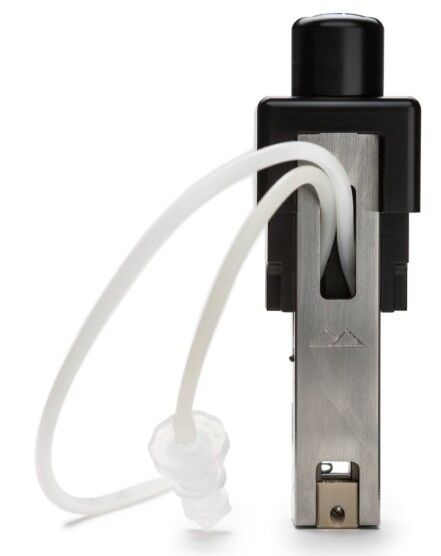

*  High concentration zeta potential cell kit
This high concentration cell enables measurement of the zeta potential of samples with little or no dilution required.

High concentration zeta potential cell kit



















*  12 mm square glass cuvette

Compatible with both aqueous and non-aqueous solvents and dispersants, and is used for size measurements.

12 mm square glass cuvette

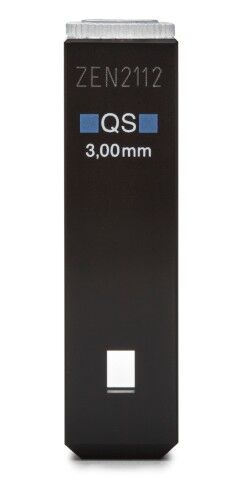

* Low-volume quartz cuvette

Holds between 12 μL and 45 μL of sample and is used for size measurements. It is compatible with both aqueous and non-aqueous solvents.

Low-volume quartz cuvette

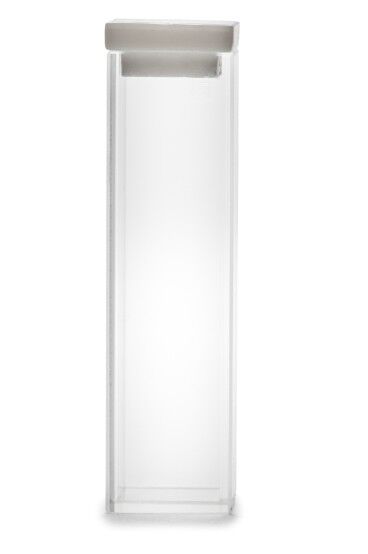

* 12 mm glass cell

Used for size and zeta potential measurements using the ‘dip’ cell, compatible with both aqueous and non-aqueous solvents and dispersants.

12 mm glass cell



















* 12 mm square polystyrene cuvette

For size measurements, and also for zeta potential measurements when used with the ‘dip’ cell. This cuvette is typically used for samples where cross-contamination might be an issue.

12 mm square polystyrene cuvette

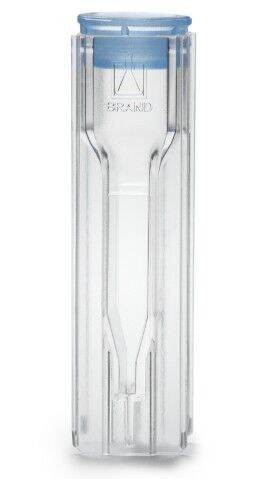

* Disposable micro-cuvette

Holds a maximum sample volume of 40 μL. Compatible with both aqueous and non-aqueous solvents and dispersants for size measurements.

Disposable micro-cuvette
